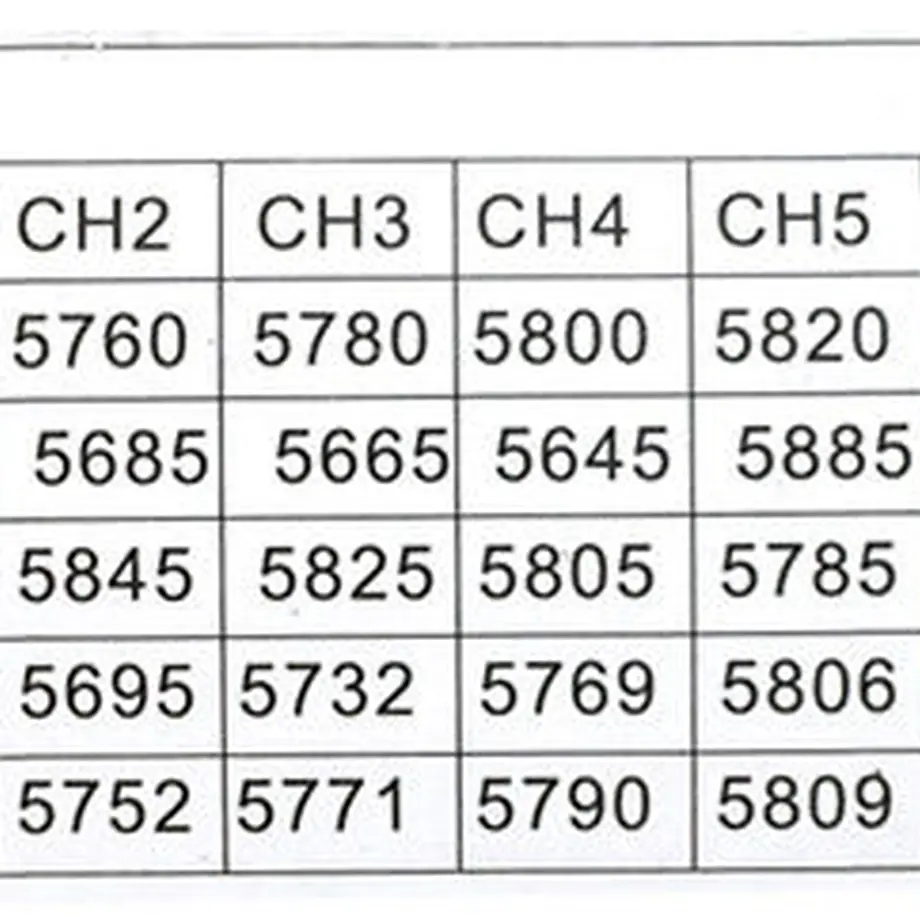

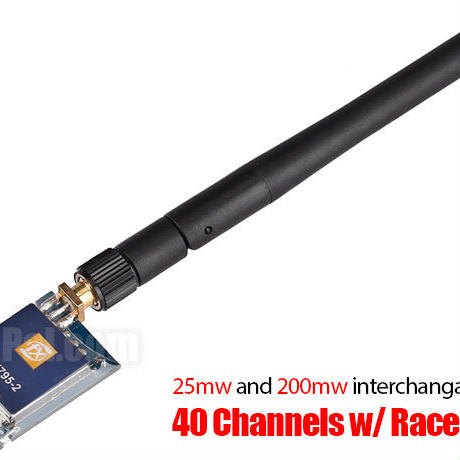

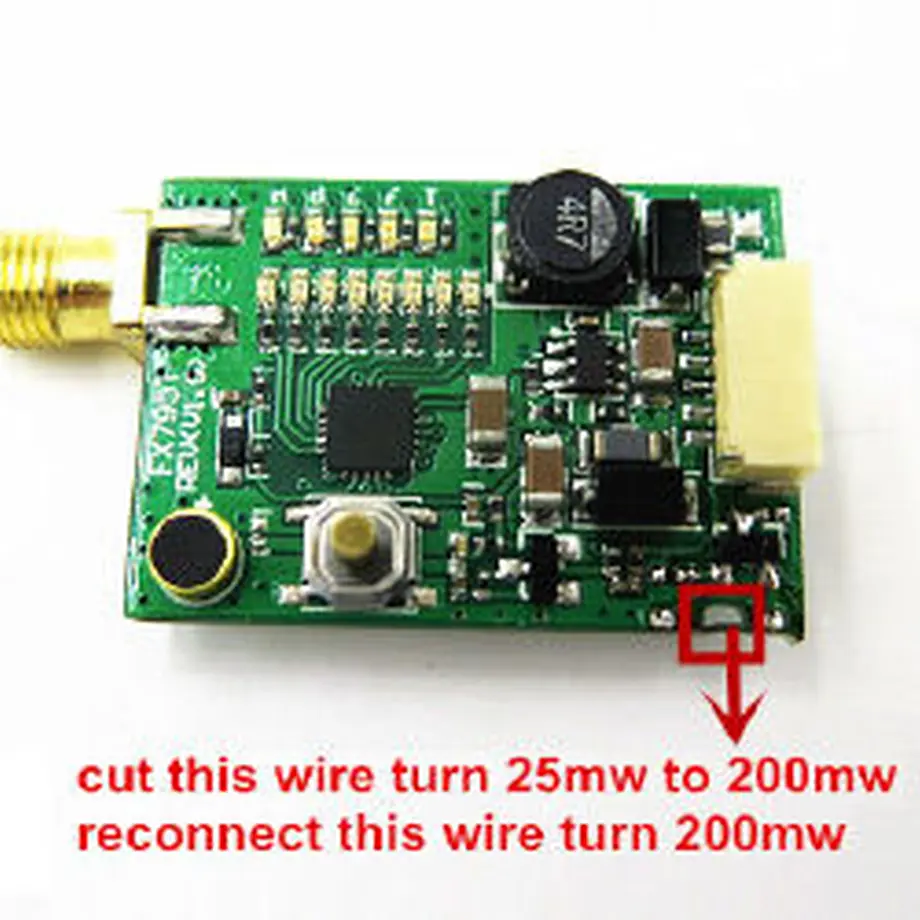

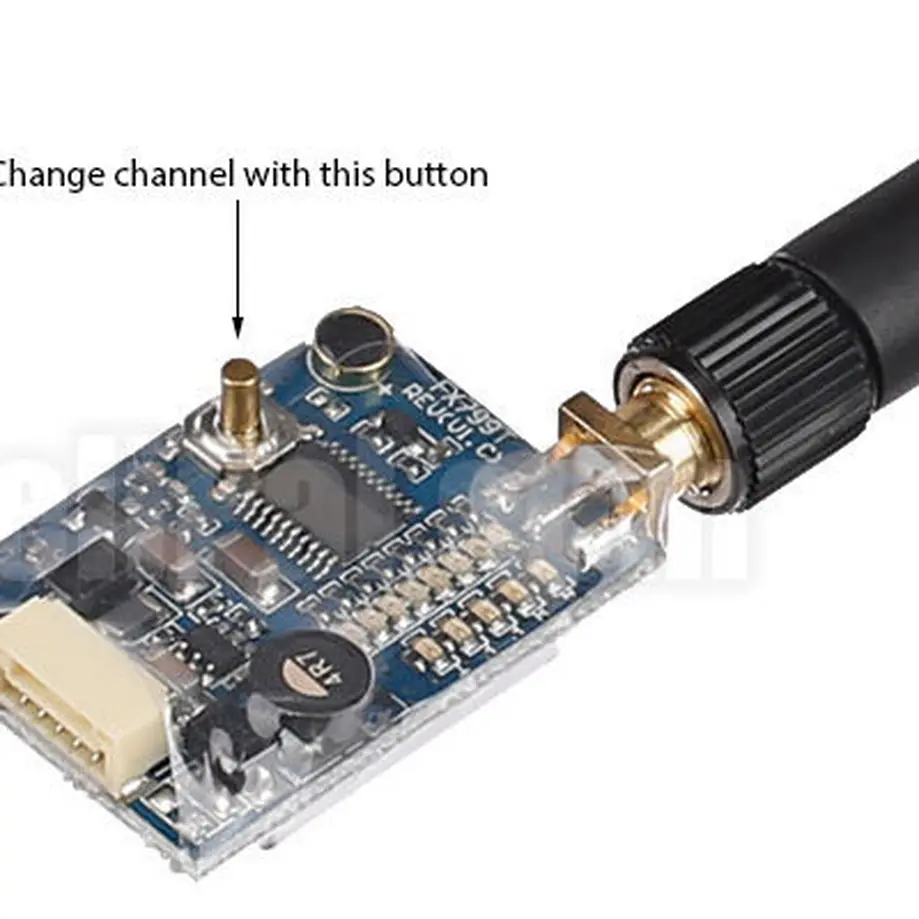

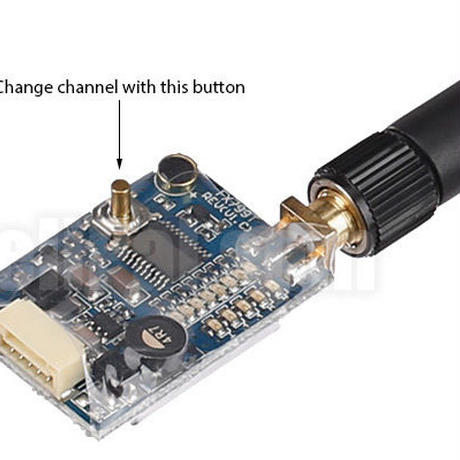

こちらの商品は新品・未使用ですが特価商品のため初期不良などについてはメーカーに直接お問い合わせお願いしております。ご購入前に予めご了承ください Specially made for FPV Racing, it has 40 Channels and it has Race Band The feature of this system is the Race Band (a.k.a. R band), which is 37mhz apart from the next channel, all 8 sub-channels in R Band will not interfere with each other, this is great news for FPV racers, as there are many people flying in the same place, their FPV system always jam with each other, with this video transmitter using R Band, everyone is happy. R Band - which is 37mhz apart from the next channel (e.g. 5658, 5695, 5732, 5769, 5806, 5843, 5880, 5817mhz), this minimize jamming with another FPV player in the field. Interchangeable between 25mw and 200mw, this feature is made to ful-fil some countries regulation Great for small drones - only 31mm x 22mm, weight 8g Features: - 25mw or 200mw interchangeable output - with Race Band (Great for FPV Racers) - 40 channels, change with a button - Micro size and very light weight Specifications : - Antenna connector : RP-SMA Female - Module : Wideband FM Module - Video Format : NTSC / PAL - Output Impedance : 50 Ohm - Output Power : 12~14dBM at low output, 22~24dBM at high output - Frequency Range : 5645 ~ 5945 Mhz - Channel : 40CH - Operating Voltage : 7V~20V - Supply Current : 70mA / 200mA - Output Voltage (VOUT) : 5V - Operating Temperature : -10~85 degrees - Video Band Width : 8mhz (except R Band, that is 37mhz apart) - Audio Carrier Frequency : 6.5MHz - Video Input Level : 0.8~1.2 Vp-p - Video Input Impedance : 75 Ohm - Audio Input Level : 0.5~2.0 Vp-p - Audio Input Impedance : 10K Ohm - Dimension : 31mm x20mm x 8mm - Weight : 8g (without antenna) WARNING NEVER CONNECT TRANSMITTER TO BATTERY WITHOUT ANTENNA This package includes : 1. FX795-T2 FPV 5.8Ghz 25mw or 200mw Transmitter w/ Antenna 2. Transmitter Connection Cable
