Hobbywing XRotor Micro 45A 4-in-1 BLHELI 32 3s-6s ESC DSHOT1200
5dc0d824965803562790d0c6 5dc0d824965803562790d0c6 5dc0d824965803562790d0c6

Hobbywing XRotor Micro 45A 4-in-1 BLHELI 32 3s-6s ESC DSHOT1200

¥3,500 税込

送料についてはこちら

SOLD OUT

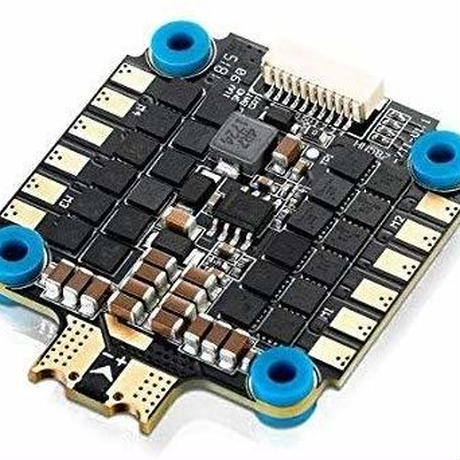

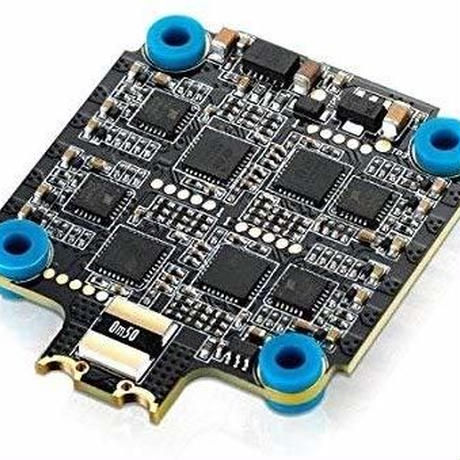

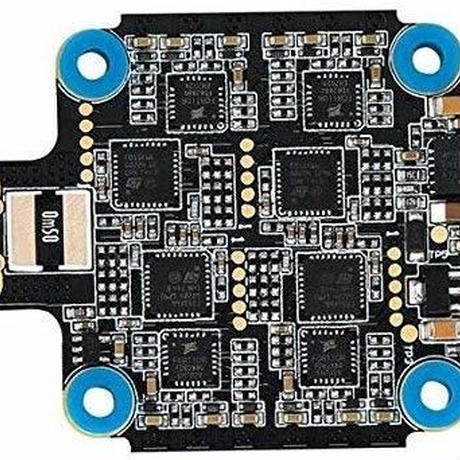

こちらの商品は新品・未使用ですが特価商品のため初期不良などについてはメーカーに直接お問い合わせお願いしております。ご購入前に予めご了承ください また、マニュアルが欠けている場合があります その場合は下記リンクを参考にしてください https://cdn.shopify.com/s/files/1/0109/9702/files/XRotor45A4in1BLHeli326Sen.pdf?14146495584507456805 The Hobbywing Xrotor Micro 45A 6S 4 in 1 ESC Dshot1200. A powerful ESC with 32bit BLHeli capabilities. Tons of power, with reliable performance. Features High performance 32-bit microprocessor with the running frequency of up to 48MHz for excellent performance. BLHeli_32 firmware is the third generation BLHeli, following base BLHeli and BLHeli-S. All codes use damped light mode. Damped light does regenerative braking, causing very fast motor retardation, and inherently also does active freewheeling. The code supports features to prevent sync loss. There are tunable parameters that can make the code run well even in the most demanding situations, although default settings will work excellently in normal operating environments. The code supports regular 1-2ms pulse width input, as well as Oneshot125 (125-250us), Oneshot42 (41.7-83.3us) and Multishot (5-25us). Dshot signaling is supported at any rate up to at least Dshot1200. The input signal is automatically detected by the ESC upon power up. The code also supports a beacon functionality, where the ESC will start beeping after a given time of zero throttle. This can be very useful for finding lost crafts. On board 10V &5V BEC , powering different accessories such as FC , VTX ,Camera and LED lights and etc. Specifications Model XRotor Micro 45A 4in1 BLHeli32 6S SKU 30902090 Application FPVs with 130-280mm Diagonal Wheelbase LiPo Power input 3S-6S Cont.Current 45Ax4 Burst Current 60Ax4 BEC Output 5V@1.5A / 10V@1.5A Input wires 12AWG-130mm* (Red/Black) Output Wire No wires but solder tabs Connectors (In/Out) XT60 (w/ Wires Soldered on) /no Weight / Size 11.5g / 32.7x18.4x6.2mm Mounting holes 30.5x30.5mm Throttle Calibration Supported ESC Programming BLHeliSuite32 DEO Supported OneShot Mode Supported Timing Supported Motor Rotation Supported * Note: All the wire length above is the original length, not the length you see from the outside. マニュアル https://cdn.shopify.com/s/files/1/0109/9702/files/XRotor45A4in1BLHeli326Sen.pdf?14146495584507456805
